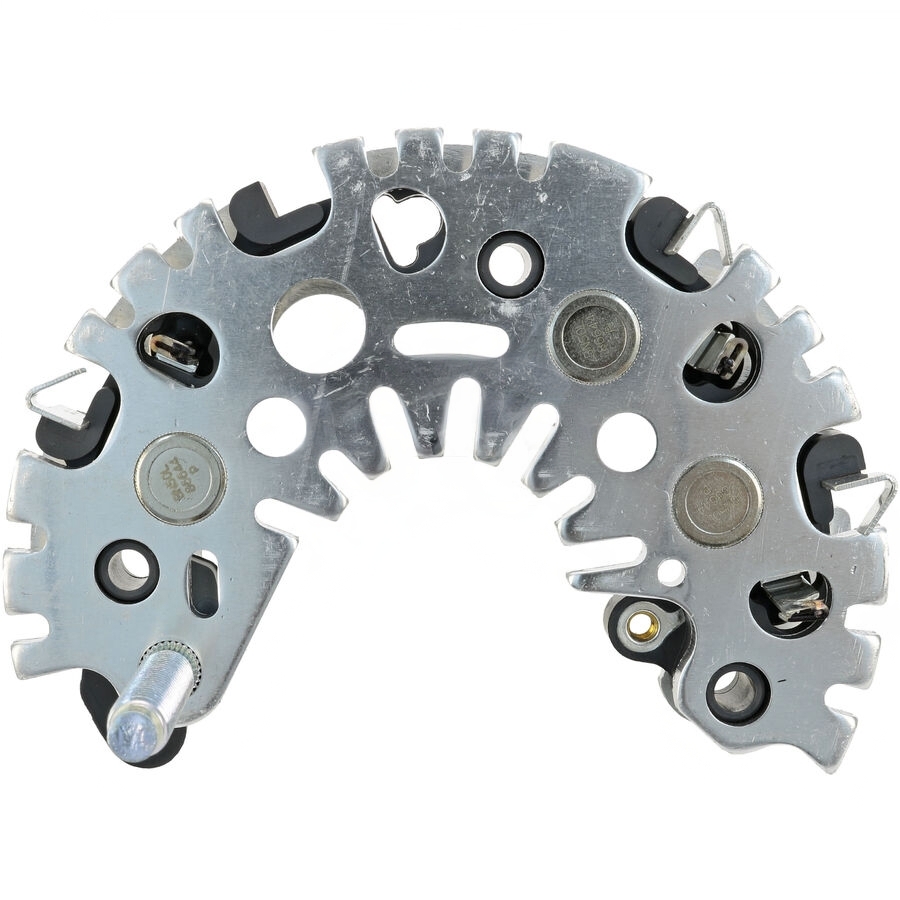

Артикул: IXR642
| Категория | Диодный мост |
| Применимость (Аналог) | MAGNETI MARELLI |
| Производитель | Transpo |
| Упаковщик | WAIglobal |
Аналоги / Кросс-коды
-
AUTO MAGNETOКоды: AM-26642, AM-26642I
-
CARGOКоды: 138377, F032138377
-
CASCOКоды: CRC30104AS
-
CQКоды: CQ1080064
-
ELECTROLOGКоды: RCT9006
-
ERAКоды: 215797, 215803
-
HUCOКоды: 139075
-
LUCASКоды: 063624201010, 085552105010, UBB814
-
MAGNETI MARELLIКоды: 000063624201, 000063624202, 063624202010, 63624201010, 63625801, RDD42, RDD42A, RDD42B
-
MOBILETRONКоды: RI-23H
-
POWERMAXКоды: 1110920, 81110920
-
REALКоды: 21104401BN
-
SANDOКоды: SRC30104
-
WAI / TRANSPOКоды: IXR642, IXR7595
-
WOODAUTOКоды: RTF49560
Технические характеристики
| I.D.1 [ mm ] | 32.00 |
|---|---|
| O.D.1 [ mm ] | 121.40 |
| Diodes [ qty. ] | 6 |
| Diode Amp. [ A ] | 50 |
| B+H. [ mm ] | 40.60 |
| B+d. [ mm ] | M8X1.25 |
| Mounting dist. [ mm ] | 85 |
Применения
| Бренд | Модель |
|---|---|
| 063321310010 | LUCAS |
| 063321315010 | LUCAS |
| 063321316010 | LUCAS |
| 063321328010 | LUCAS |
| 063321331010 | LUCAS |
| 063321332010 | LUCAS |
| 063321340010 | LUCAS |
| 063321349010 | LUCAS |
| 063321355010 | LUCAS |
| 063321390010 | LUCAS |
| 063321391010 | LUCAS |
| 063321395010 | LUCAS |
| 063321398010 | LUCAS |
| 063321401010 | LUCAS |
| 063321402010 | LUCAS |
| 063321418010 | LUCAS |
| 063321419010 | LUCAS |
| 063321423010 | LUCAS |
| 063321426010 | LUCAS |
| 063321436010 | LUCAS |
| 063321453010 | LUCAS |
| 063321461010 | LUCAS |
| 063321485010 | LUCAS |
| 063321497010 | LUCAS |
| 063321804010 | LUCAS |
| 063321940010 | MAGNETI MARELLI |
| 063377005010 | MAGNETI MARELLI |
| 063377490010 | LUCAS |
| 063377491010 | LUCAS |
| 1012100160 | DENSO |
| 1012100161 | DENSO |
| 1012100990 | DENSO |
| 1022118260 | DENSO |
| 1022118270 | DENSO |
| 1022118640 | DENSO |
| 1022118641 | DENSO |
| 1022118650 | DENSO |
| 1022118651 | DENSO |
| 54022669 | LUCAS |
| 63320277 | MAGNETI MARELLI |
| 63320333 | MAGNETI MARELLI |
| 63321237 | MAGNETI MARELLI |
| 63321246 | MAGNETI MARELLI |
| 63321310 | MAGNETI MARELLI |
| 63321315 | MAGNETI MARELLI |
| 63321316 | MAGNETI MARELLI |
| 63321328 | MAGNETI MARELLI |
| 63321331 | MAGNETI MARELLI |
| 63321332 | MAGNETI MARELLI |
| 63321335 | MAGNETI MARELLI |
| 63321340 | MAGNETI MARELLI |
| 63321349 | MAGNETI MARELLI |
| 63321355 | MAGNETI MARELLI |
| 63321389 | MAGNETI MARELLI |
| 63321390 | MAGNETI MARELLI |
| 63321391 | MAGNETI MARELLI |
| 63321395 | MAGNETI MARELLI |
| 63321398 | MAGNETI MARELLI |
| 63321401 | MAGNETI MARELLI |
| 63321402 | MAGNETI MARELLI |
| 63321418 | MAGNETI MARELLI |
| 63321419 | MAGNETI MARELLI |
| 63321423 | MAGNETI MARELLI |
| 63321426 | MAGNETI MARELLI |
| 63321436 | MAGNETI MARELLI |
| 63321453 | MAGNETI MARELLI |
| 63321461 | MAGNETI MARELLI |
| 63321485 | MAGNETI MARELLI |
| 63321489 | MAGNETI MARELLI |
| 63321491 | MAGNETI MARELLI |
| 63321497 | MAGNETI MARELLI |
| 63321501 | MAGNETI MARELLI |
| 63321506 | MAGNETI MARELLI |
| 63321507 | MAGNETI MARELLI |
| 63321792 | MAGNETI MARELLI |
| 63321800 | MAGNETI MARELLI |
| 63321801 | MAGNETI MARELLI |
| 63321802 | MAGNETI MARELLI |
| 63321803 | MAGNETI MARELLI |
| 63321804 | MAGNETI MARELLI |
| 63321805 | MAGNETI MARELLI |
| 63321806 | MAGNETI MARELLI |
| 63321814 | MAGNETI MARELLI |
| 63321815 | MAGNETI MARELLI |
| 63321816 | MAGNETI MARELLI |
| 63321827 | MAGNETI MARELLI |
| 63321838 | MAGNETI MARELLI |
| 63321858 | MAGNETI MARELLI |
| 63321940 | MAGNETI MARELLI |
| 63377004 | MAGNETI MARELLI |
| 63377005 | MAGNETI MARELLI |
| 63377490 | MAGNETI MARELLI |
| 63377492 | MAGNETI MARELLI |
| A4023 | AS-PL |
| A4024 | AS-PL |
| A4042 | AS-PL |
| A4042(P-INA) | AS-PL |
| A4042(P) | AS-PL |
| A4049 | AS-PL |
| A4060 | AS-PL |
| A4073 | AS-PL |
| A4073(P-INA) | AS-PL |
| A4073(P) | AS-PL |
| A4082 | AS-PL |
| A4096 | AS-PL |
| A4096(P-INA) | AS-PL |
| A4096(P) | AS-PL |
| A4115 | AS-PL |
| A4134S | AS-PL |
| A4159S | AS-PL |
