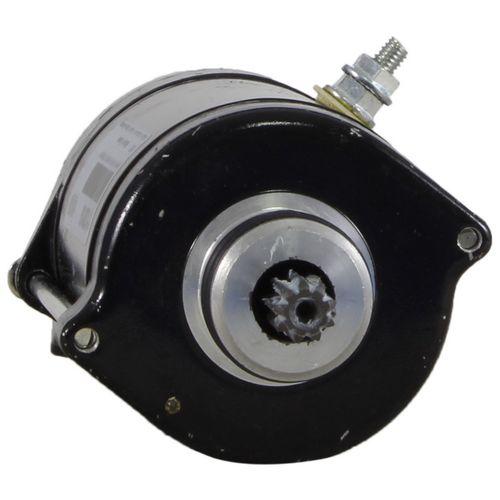

Артикул: STU2010DJ
| Категория | Стартер |
| Применимость (Аналог) | MITSUBA |
| Производитель | KRAUF |
| Упаковщик | Voltag |
Кросс-коды
-
ARROWHEADКоды: SMU0023, SMU0039
-
AS-PLКоды: UD19110S
-
BOMBARDIERКоды: 278-000-987, 278-001-937
-
BOSCHКоды: F032112010
-
CARGOКоды: 111916, 112010, F032111916
-
DELCOКоды: RS41178
-
JUST PARTSКоды: KW2-0002N, PO2-0001N
-
KAWASAKIКоды: 21163-3702, 21163-3709, 21163-3712, 21163-3714
-
KUHNERКоды: 254945
-
LESTERКоды: 18330
-
POLARISКоды: 3240110, 3240281, 4010675, 4060118
-
WAI / TRANSPOКоды: 18399N
-
WILSONКоды: 71-26-18330
Технические характеристики
| напряжение [ V ] | 12 |
|---|---|
| Мощность [ kW ] | 0.60 |
| Вращение стартера | CW |
| Размер B [ mm ] | 41.00 |
| Количество зубьев [ qty. ] | 9 |
| Число отверстий в головке [ qty. ] | 3 |
| Число резьбовых отверстий [ qty. ] | 1 |
| L.1 [ mm ] | 188.00 |
| O.1 [ mm ] | 25.00 |
| O.2 [ mm ] | 25.00 |
| O.3 [ mm ] | 45.00 |
| C.1 [ mm ] | 7.00 |
| C.2 [ mm ] | M6x1.0 |
| C.3 [ mm ] | 7.00 |
Применения
| Бренд | Модель | Тип | Год |
|---|---|---|---|
| KAWASAKI | 1100 STX | 1071cc | 01.1997-12.1999 |
| KAWASAKI | 1100 STX D.I. | 1071cc | 01.2000-12.2003 |
| KAWASAKI | 1100 ZXI | 1071cc | 01.1996-12.2003 |
| KAWASAKI | 3D DI | 951cc | 01.2006-12.2007 |
| KAWASAKI | 3D RFI | 951cc | 01.2006-12.2007 |
| KAWASAKI | 650 SX | 650cc | 01.1987-12.1993 |
| KAWASAKI | 750 SS | 743cc | 01.1992-12.1997 |
| KAWASAKI | 750 STX | 743cc | 01.1998-12.1998 |
| KAWASAKI | 750 SX | 743cc | 01.1992-12.1995 |
| KAWASAKI | 750 SXi | 743cc | 01.1995-12.1996 |
| KAWASAKI | 750 ZXi | 743cc | 01.1995-12.1997 |
| KAWASAKI | 800 SX-R | 781cc | 01.2003-12.2007 |
| KAWASAKI | 900 STS | 891cc | 01.2001-12.2002 |
| KAWASAKI | 900 STX | 891cc | 01.1997-12.2006 |
| KAWASAKI | 900 ZXi | 891cc | 01.1995-12.1997 |
| KAWASAKI | 947 Rotax Engine | 951cc | 01.1998-12.2007 |
| KAWASAKI | Freedom | 701cc | 01.2002-12.2004 |
| KAWASAKI | Genesis | 1165cc | 01.1999-12.2002 |
| KAWASAKI | Genesis FFI | 1165cc | 01.2000-12.2000 |
| KAWASAKI | Genesis Ficht | 1165cc | 01.1999-12.1999 |
| KAWASAKI | Genesis I | 1165cc | 01.2001-12.2004 |
| KAWASAKI | GSX Limited | 951cc | 01.1998-12.1999 |
| KAWASAKI | GSX LTD | 951cc | 01.1998-12.1999 |
| KAWASAKI | GTX | 951cc | 01.1998-12.2002 |
| KAWASAKI | GTX DI | 951cc | 01.2000-12.2003 |
| KAWASAKI | GTX Limited | 951cc | 01.1998-12.1999 |
| KAWASAKI | Hurricane | 701cc | 01.1996-12.1997 |
| KAWASAKI | JF650 TS B1-B2 | 650cc | 01.1989-12.1990 |
| KAWASAKI | JF650 TS B3-B8 | 650cc | 01.1991-12.1996 |
| KAWASAKI | JF650 X2 A1-A2 | 650cc | 01.1986-12.1987 |
| KAWASAKI | JF650 X2 A10 | 650cc | 01.1995-12.1995 |
| KAWASAKI | JF650 X2 A3-A5 | 650cc | 01.1988-12.1990 |
| KAWASAKI | JF650 X2 A6-A9 | 650cc | 01.1991-12.1994 |
| KAWASAKI | JH1100 | 1071cc | 01.1996-12.2003 |
| KAWASAKI | JH1100 1100 Zxi A1-A5 | 1071cc | 01.1996-12.2000 |
| KAWASAKI | JH1100 1100 Zxi A6-A8 | 1071cc | 01.2001-12.2003 |
| KAWASAKI | JH1100 Ultra 130 D.I. B1-B4 | 1071cc | 01.2001-12.2004 |
| KAWASAKI | JH750 | 743cc | 01.1992-12.1997 |
| KAWASAKI | JH750 750 ZXI C1-C3 | 743cc | 01.1995-12.1997 |
| KAWASAKI | JH750 750SS A1-A4 | 743cc | 01.1992-12.1995 |
| KAWASAKI | JH750 750SS E1-E2 | 743cc | 01.1996-12.1997 |
| KAWASAKI | JH750 Super Sport XI B1-B3 | 743cc | 01.1993-12.1995 |
| KAWASAKI | JH750 Super Sport XI F1-F2 | 743cc | 01.1996-12.1997 |
| KAWASAKI | JH750 Xi Sport G1-G2 | 743cc | 01.1998-12.1999 |
| KAWASAKI | JH750 XIR D1 | 743cc | 01.1994-12.1994 |
| KAWASAKI | JH900 | 891cc | 01.1995-12.1997 |
| KAWASAKI | JH900 900 ZXI A1-A3 | 891cc | 01.1995-12.1997 |
| KAWASAKI | JL650 SC A1-A5 | 650cc | 01.1991-12.1995 |
| KAWASAKI | JS650 | 650cc | 01.1987-12.1993 |
| KAWASAKI | JS650 650SX A1 | 650cc | 01.1987-12.1987 |
| KAWASAKI | JS650 650SX A2-A4 | 650cc | 01.1988-12.1990 |
| KAWASAKI | JS650 650SX B1-B3 | 650cc | 01.1991-12.1993 |
| KAWASAKI | JS750 | 743cc | 01.1992-12.1996 |
| KAWASAKI | JS750 750 SXI Pro C1-C5 | 743cc | 01.1998-12.2002 |
| KAWASAKI | JS750 750SX A1-A4 | 743cc | 01.1992-12.1995 |
| KAWASAKI | JS750 750SXI B1-B2 | 743cc | 01.1995-12.1996 |
| KAWASAKI | JS800 | 781cc | 01.2003-12.2007 |
| KAWASAKI | JS800 SX-R A1-A9 | 781cc | 01.2003-12.2009 |
| KAWASAKI | JT1100 | 1071cc | 01.1997-12.2003 |
| KAWASAKI | JT1100 1100 STX A1 | 1071cc | 01.1997-12.1997 |
| KAWASAKI | JT1100 1100 STX B1-B2 | 1071cc | 01.1998-12.1999 |
| KAWASAKI | JT1100 1100 STX D.I. C1 | 1071cc | 01.2000-12.2000 |
| KAWASAKI | JT1100 1100 STX D.I. F1-F2 | 1071cc | 01.2001-12.2002 |
| KAWASAKI | JT1100 1100 STX D.I. G1 | 1071cc | 01.2003-12.2003 |
| KAWASAKI | JT750 | 743cc | 01.1998-12.1998 |
| KAWASAKI | JT750 750 STX C1 | 743cc | 01.1998-12.1998 |
| KAWASAKI | JT750 ST A1-A2 | 743cc | 01.1994-12.1995 |
| KAWASAKI | JT750 STS B1-B3 | 743cc | 01.1995-12.1997 |
| KAWASAKI | JT900 | 891cc | 01.1997-12.2006 |
| KAWASAKI | JT900 900 STS B3-B4 | 891cc | 01.2001-12.2002 |
| KAWASAKI | JT900 900 STX A1-A2 | 891cc | 01.1997-12.1998 |
| KAWASAKI | JT900 900 STX B1-B2 | 891cc | 01.1999-12.2000 |
| KAWASAKI | JT900 900 STX C1-C2 | 891cc | 01.2001-12.2002 |
| KAWASAKI | JT900 900 STX D1 | 891cc | 01.2003-12.2003 |
| KAWASAKI | JT900 900 STX E1-E2 | 891cc | 01.2004-12.2006 |
| KAWASAKI | JT900 900 STX E6F | 891cc | 01.2004-12.2006 |
| KAWASAKI | LRV | 951cc | 01.2000-12.2001 |
| KAWASAKI | LRV DI | 951cc | 01.2002-12.2003 |
| KAWASAKI | MSX 140 | 1192cc | 01.2003-12.2004 |
| KAWASAKI | Octane | 777cc | 01.2002-12.2004 |
| KAWASAKI | Pro 1200 | 1165cc | 01.2000-12.2001 |
| KAWASAKI | PRO 785 | 779cc | 01.1998-12.2000 |
| KAWASAKI | RX | 951cc | 01.2000-12.2002 |
| KAWASAKI | RX DI | 951cc | 01.2000-12.2003 |
| KAWASAKI | RX LE DI | 951cc | 01.2002-12.2002 |
| KAWASAKI | RX X | 951cc | 01.2001-12.2001 |
| KAWASAKI | SC - JL650 | 650cc | 01.1991-12.1995 |
| KAWASAKI | SL1050 | 1050cc | 01.1997-12.1997 |
| KAWASAKI | SL1050 | 1051cc | 01.1997-12.1997 |
| KAWASAKI | SL650 | 650cc | 01.1992-12.1995 |
| KAWASAKI | SL650 STD | 650cc | 01.1995-12.1995 |
| KAWASAKI | SL700 | 701cc | 01.1996-12.1997 |
| KAWASAKI | SL700 Deluxe | 701cc | 01.1997-12.1997 |
| KAWASAKI | SL750 | 750cc | 01.1993-12.1995 |
| KAWASAKI | SL780 | 779cc | 01.1996-12.1997 |
| KAWASAKI | SL900 | 900cc | 01.1996-12.1997 |
| KAWASAKI | SL900 | 889cc | 01.1996-12.1997 |
| KAWASAKI | SLH | 701cc | 01.1998-12.2001 |
| KAWASAKI | SLH700 | 701cc | 01.1998-12.1999 |
| KAWASAKI | SLT 700 | 701cc | 01.1996-12.1997 |
| KAWASAKI | SLT 750 | 750cc | 01.1994-12.1995 |
| KAWASAKI | SLT 780 | 779cc | 01.1996-12.1997 |
| KAWASAKI | SLTH | 701cc | 01.1998-12.1999 |
| KAWASAKI | SLTX | 1051cc | 01.1996-12.1999 |
| KAWASAKI | SLTX | 1050cc | 01.1996-12.1999 |
| KAWASAKI | SLTX-B | 1165cc | 01.1999-12.1999 |
| KAWASAKI | SLX | 1050cc | 01.1996-12.2000 |
| KAWASAKI | SLX | 1051cc | 01.1999-12.1999 |
| KAWASAKI | SLX | 1165cc | 01.2000-12.2001 |
| KAWASAKI | SLX 780 | 779cc | 01.1995-12.1996 |
| KAWASAKI | SLX Pro 785 | 779cc | 01.1997-12.1998 |
| KAWASAKI | SLXH | 1051cc | 01.1998-12.1998 |
| KAWASAKI | SLXH | 1050cc | 01.1998-12.1998 |
| KAWASAKI | Sportster | 01.2000-12.2006 | |
| KAWASAKI | Sportster LE | 951cc | 01.2000-12.2004 |
| KAWASAKI | Sportster LE DI | 951cc | 01.2005-12.2006 |
| KAWASAKI | ST - JT750 | 743cc | 01.1994-12.1995 |
| KAWASAKI | STS - JT750 | 743cc | 01.1995-12.1997 |
| KAWASAKI | Super Sport Xi - JH750 | 743cc | 01.1993-12.1997 |
| KAWASAKI | SXi Pro - JS750 | 743cc | 01.1998-12.2002 |
| KAWASAKI | TS - JF650 | 650cc | 01.1989-12.1996 |
| KAWASAKI | Ultra 130 D.I. - JH1100 | 1071cc | 01.2001-12.2004 |
| KAWASAKI | Virage | 701cc | 01.2000-12.2004 |
| KAWASAKI | Virage I | 777cc | 01.2002-12.2004 |
| KAWASAKI | Virage TX | 1165cc | 01.2000-12.2002 |
| KAWASAKI | Virage Txi | 1165cc | 01.2001-12.2002 |
| KAWASAKI | Wave Runner | 1100cc | - |
| KAWASAKI | Wave Runner | 650cc | - |
| KAWASAKI | Wave Runner | 750cc | - |
| KAWASAKI | Wave Runner | 900cc | - |
| KAWASAKI | X-2 - JF650 | 650cc | 01.1986-12.1995 |
| KAWASAKI | Xi Sport - JH750 | 743cc | 01.1998-12.1999 |
| KAWASAKI | XiR - JH750 | 743cc | 01.1994-12.1994 |
| KAWASAKI | XP | 951cc | 01.1998-12.2002 |
| KAWASAKI | XP DI | 951cc | 01.2003-12.2004 |
| KAWASAKI | XP Limited | 951cc | 01.1998-12.1999 |
